Claude Usage Tracker - Waveshare ESP32-S3-Touch-AMOLED-2.16

A small ESP32 dashboard I made for my desk to keep an eye on Claude Code usage. It runs on a Waveshare ESP32-S3-Touch-AMOLED-2.16 (2.16" square AMOLED, battery, IMU auto-rotation), pairs with my laptop over Bluetooth, and the splash screen plays pixel-art Clawd animations that get busier when your usage rate climbs. The two side buttons send Space and Shift+Tab over BLE HID for Claude Code's voice mode and mode-toggle shortcuts.

Screens

Two persistent screens, Usage and Bluetooth, are cycled by the middle physical button (PWR). The splash is a touch-toggled welcome animation: tap anywhere on the display (outside the Reset zone on the Bluetooth screen) to show it; tap again to dismiss. Splash is the default boot screen.

Splash	Usage	Bluetooth
Boot screen; touch-toggle anytime	Session and weekly utilization	Connection status and bond reset

On splash, the middle (PWR) button cycles to the next animation manually; otherwise the firmware auto-rotates every 20 s within the usage-rate group.

Features

• Splash screen — 13 looping 20×20 pixel-art Clawd animations scaled 24× to fill the display. The active animation reacts to your current Claude usage rate (idle / normal / active / heavy), auto-rotating within the matching group every 20 s.

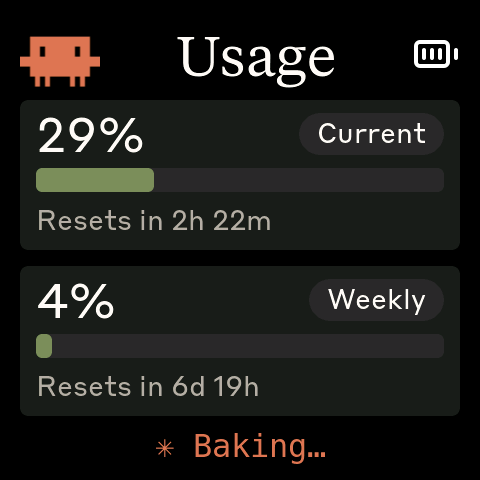

• Usage dashboard — Live 5-hour session and 7-day weekly utilization bars with reset countdowns.
• Physical button shortcuts — Left button → Space (voice mode), right button → Shift+Tab (mode toggle); both sent over BLE HID.

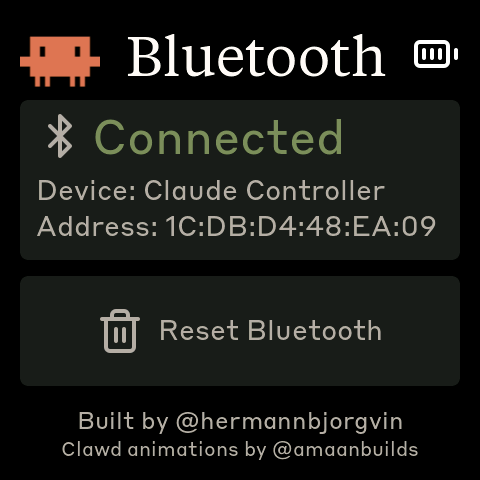

• Bluetooth screen — Connection status, device name, MAC address, bond reset zone.
• Auto-rotation — QMI8658 accelerometer drives 90° rotation snaps with a quick AMOLED brightness-flash transition.
• Battery indicator — Lucide battery icons in the upper-right corner, AXP2101-driven.
• Wireless — All data communication over Bluetooth Low Energy (USB only for flashing and charging).

Hardware

• Waveshare ESP32-S3-Touch-AMOLED-2.16 — ESP32-S3R8, 2.16" 480×480 AMOLED (CO5300 QSPI), CST9220 cap touch, AXP2101 PMU + Li-Po battery, QMI8658 IMU
• USB-C cable for flashing firmware and charging
• 3.7V Li-Po battery (MX1.25 2-pin connector, optional)

Prerequisites

• Linux (tested on Ubuntu)
• PlatformIO CLI
• curl, bluetoothctl, busctl (BlueZ Bluetooth stack)
• Claude Code with an active subscription

Flash the firmware

cd firmware
pio run -t upload --upload-port /dev/ttyACM0

Bluetooth pairing

After flashing, the device advertises as "Claude Controller". Pair it once:

# Scan for the device
bluetoothctl scan le

# When "Claude Controller" appears, pair and trust it
bluetoothctl pair F4:12:FA:C0:8F:E5    # use your device's MAC
bluetoothctl trust F4:12:FA:C0:8F:E5

The MAC address is shown on the Bluetooth screen — press the middle (PWR) button to cycle to it.

Install the daemon

The daemon polls your Claude usage every 60 seconds and sends it to the display over BLE.

./install.sh
systemctl --user start claude-usage-daemon

Check status: systemctl --user status claude-usage-daemon

View logs: journalctl --user -u claude-usage-daemon -f

How it works

1. The daemon reads your Claude Code OAuth token from ~/.claude/.credentials.json
2. Makes a minimal API call to api.anthropic.com/v1/messages (1 token of Haiku, essentially free)
3. Extracts usage data from the response headers (anthropic-ratelimit-unified-5h-utilization, etc.)
4. Connects to the ESP32 over BLE and writes a JSON payload to the GATT RX characteristic
5. The ESP32 parses it and updates the LVGL dashboard
6. The firmware tracks the rate of change of session % over a 5-minute window and picks splash animations from the matching mood group (idle / normal / active / heavy)
7. The left/right physical buttons send Space and Shift+Tab as BLE HID keyboard input to the paired host (no host-side daemon involvement)

Physical buttons

The board has three physical buttons in a row. Functions are global (screen-independent) for the left and right buttons; the middle button is screen-aware.

Button	GPIO	Function
Left	GPIO 0	Hold to send Space (Claude Code voice-mode push-to-talk)
Middle (PWR)	AXP2101 PKEY	Cycle screens (Usage ↔ Bluetooth); on splash, cycle animations
Right	GPIO 18	Press to send Shift+Tab (Claude Code mode toggle)

Space and Shift+Tab are delivered as standard BLE HID keyboard reports — they work in any focused window on the paired host, not just Claude Code.

BLE protocol

The device advertises a custom GATT service alongside the standard HID keyboard service:

	UUID
Data Service	4c41555a-4465-7669-6365-000000000001
RX Characteristic (write)	4c41555a-4465-7669-6365-000000000002
TX Characteristic (notify)	4c41555a-4465-7669-6365-000000000003
HID Service	00001812-0000-1000-8000-00805f9b34fb

JSON payload format (written to RX):

{ "s": 45, "sr": 120, "w": 28, "wr": 7200, "st": "allowed", "ok": true }

Fields: s = session %, sr = session reset (minutes), w = weekly %, wr = weekly reset (minutes), st = status, ok = success flag.

Recompiling fonts

The firmware/src/font_*.c files are pre-compiled LVGL bitmap fonts. Sizes are scaled for the 314 PPI 2.16" display (~1.9× the original 165 PPI 3.5" panel).

npm install -g lv_font_conv

Generate each one (one at a time — lv_font_conv doesn't like loop-driven invocations) with --no-compress (required for LVGL 9):

# Tiempos Text (titles, 56px)
lv_font_conv --font assets/TiemposText-400-Regular.otf -r 0x20-0x7E \
  --size 56 --format lvgl --bpp 4 --no-compress \
  -o firmware/src/font_tiempos_56.c --lv-include "lvgl.h"

# Styrene B (large numbers 48, panel labels 28, small text 24, minimal 20)
for size in 48 28 24 20; do
  lv_font_conv --font assets/StyreneB-Regular.otf -r 0x20-0x7E \
    --size $size --format lvgl --bpp 4 --no-compress \
    -o firmware/src/font_styrene_${size}.c --lv-include "lvgl.h"
done

# DejaVu Sans Mono (32px, with spinner Unicode chars)
lv_font_conv --font assets/DejaVuSansMono.ttf \
  -r 0x20-0x7E,0xB7,0x2026,0x2722,0x2733,0x2736,0x273B,0x273D \
  --size 32 --format lvgl --bpp 4 --no-compress \
  -o firmware/src/font_mono_32.c --lv-include "lvgl.h"

Important: lv_font_conv v1.5.3 outputs LVGL 8 format. Each generated file must be patched for LVGL 9 compatibility:

1. Remove #if LVGL_VERSION_MAJOR >= 8 guards around font_dsc and the font struct
2. Remove the .cache field from font_dsc
3. Add .release_glyph = NULL, .kerning = 0, .static_bitmap = 0 to the font struct
4. Add .fallback = NULL, .user_data = NULL to the font struct

Without these patches, fonts compile but render as invisible.

Converting Lucide icons

The UI uses a small set of Lucide icons (bluetooth + battery states) converted to RGB565 / RGB565A8 C arrays for LVGL.

node tools/png_to_lvgl.js assets/icon_bluetooth_48.png icon_bluetooth_data ICON_BLUETOOTH_WIDTH ICON_BLUETOOTH_HEIGHT

Default tint is white (0xFFFFFF), required because Lucide PNGs ship as black-on-transparent and would render invisible against the dark UI without it. Pass --no-tint for pre-coloured artwork (e.g. the logo). Battery icons live as RGB565A8 (alpha plane) so they blend cleanly over the splash background; the rest of the icons are baked RGB565 over the panel colour. Splice the converter output into firmware/src/icons.h.

Splash animations

The splash screen plays 20×20 pixel-art Clawd animations sourced from claudepix.vercel.app, a public library of Clawd animations. Frame data and palettes are extracted by tools/scrape_claudepix.js (which evaluates the source's JavaScript in a Node VM context to resolve frames) and converted to RGB565 C arrays by tools/convert_to_c.js. The output lives in firmware/src/splash_animations.h.

To re-pull (e.g. when the source library updates):

node tools/scrape_claudepix.js
node tools/convert_to_c.js
pio run -d firmware -t upload

See tools/README.md for details.

Credits

• Built by @hermannbjorgvin (Hermann Haraldsson).
• Pixel-art Clawd animation by @amaanbuilds, sourced from claudepix.vercel.app. Frame data and palettes scraped + converted by the tooling in tools/.
• Lucide icon set (lucide.dev, MIT) for bluetooth and battery UI glyphs.
• Anthropic brand fonts (Tiempos Text, Styrene B) — see licensing warning below.
